The device is capable of sensing normal (non-essential) line voltage power and accepting an output from a fire alarm control panel (FACP) The LUT-ELI-3PH is a device that works with Lutron® lighting controls to provide an emergency lighting solution
Lutron Wiring Diagram Grafik Eye Wiring Diagram

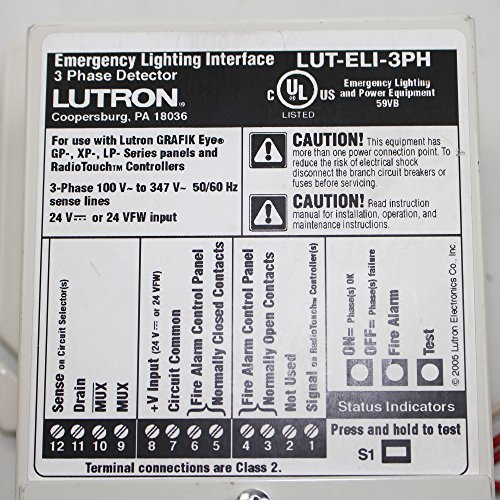

Page 1 LUTRON Power Accessories LUT-ELI-3PH ® P/N 369-299B 1 11.11.10 LUT-ELI-3PH Emergency Lighting Interface Description • The LUT-ELI-3PH unit is to be used in conjunction with Lutron GP, LP, LCP, XP, and XPS panels, RadioTouch ® controllers, EcoSystem bus supplies, Energi Savr ® Node units, GRAFIK Eye QS units, and Quantum ® ® lighting management hubs. Lutron LUT-ELI-3PH Power Accessories 369299g 6 04.15.21 Sub Brand: Application: Indoor use only Type: Emergency Lighting Interface Color: White Mounting: Voltage Rating: Wattage: Actuator: Connection: Gang: Frequency Rating: Standard.
LUTELI3PH Lutron GrafikEye Emegency Lighting eBay. Shop Lutron LUT-ELI-3PH Emergency Lighting Interface from the largest Independent Distributor of Custom Audio, Wire the line voltage leads that protrude from back of LUT-ELI-3PH unit into the junction box
Fill Free fillable Lutron electronics LUTELI3PH Emergency Lighting. View online (20 pages) or download PDF (3 MB) Lutron Electronics LUT-ELI-3PH Installation manual • LUT-ELI-3PH serial switch boxes PDF manual download and more Lutron Electronics online manuals Emergency Lighting Interface LUT-ELI-3PH Installation Guide Troubleshooting a GRAFIK Eye QS Installation ® Symptom Possible Cause Solution Lights are at LUT-ELI-3PH unit is not connected Connect the 'CCI SIG' terminal from the GRAFIK Eye QS full intensity
